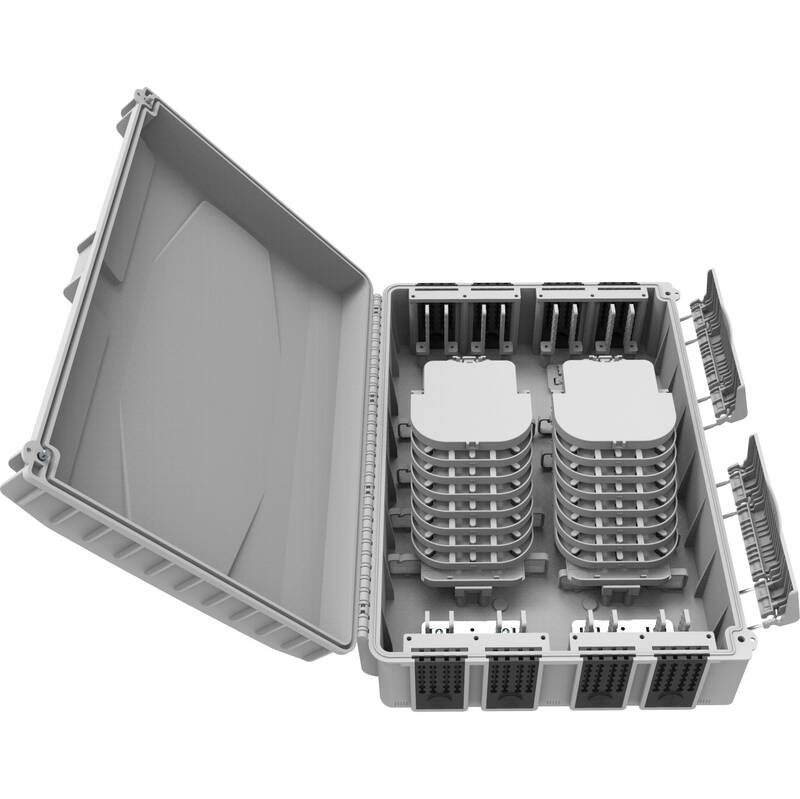

Excel Encasa 384 Fibre Splice Enclosure Unloaded Grey

The Encasa range of fibre distribution points have been designed to fit within the FTTx network. These enclosures can be aerial or wall mounted. Made from 100% virgin UL 94 V-0 rated material, UV stable and are IP56 rated, allowing them to be used in both internal and external applications.

This Encasa fibre distribution point accommodates 384 splice connections. Flexibility is increased through the option to use the enclosure for traditional splicing with integrated splice trays included for cables with a capacity of 384 fibres and the installation of cables via the 192 split gland cable exit points 96 on the top and bottom of the enclosure that accept both flat and round cable.

The use of splitters is also possible with mounting positions for up to 24 units found under the splice trays.

The cable entry points allow for midspan cable installation and for cable to be passed through to feed further enclosures in the network. Integrated fibre management allows 250 µm and 900 µm fibre to be installed, keeping the fibres safe and always maintaining the required bend radius.
