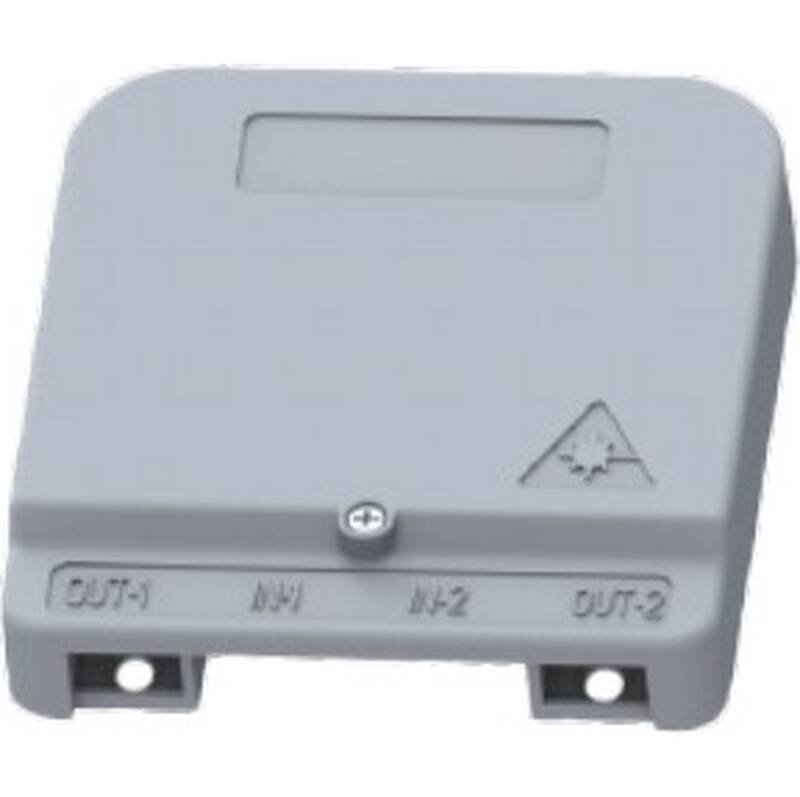

The Encasa range of customer splice points have been designed to fit within the FTTx network. These enclosures can be wall mounted. Made from 100% virgin UL94-V0 rated material, UV stable and are IP54 rated, allowing them to be used in both internal and external applications.
This Encasa customer splice point accommodates up to 4 splice connections. The splice point has integrated fibre management allowing 250 μm and 900 μm fibre to be installed, keeping the fibres safe and always maintaining the required bend radius.
| Surface mounted | yes |
| With couplers | no |
| Suitable for type of fibre | Multi mode/single mode |
| IP-rating | IP55 |
| Ambient temperature | -40...60 °C |
| Width | 98.5 mm |
| Height | 103.8 mm |
| Depth | 21 mm |
