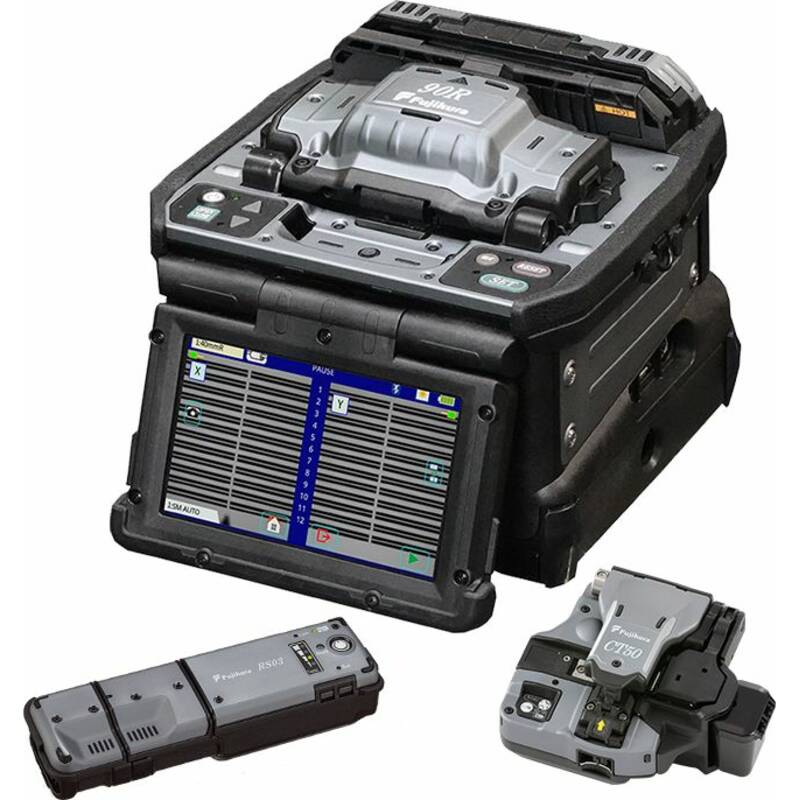

Fujikura 90R 12 Fiber Ribbon Fusion Splicer Kit
Part Code: 90R KIT
The 90R is a mass fusion splicer capable of splicing up to 16 fiber ribbons. The 90R series is the first of its kind with an innovative user replaceable V-groove assembly which makes cleanliness and application versatility an issue of the past. Spare replaceable V-grooves are supplied as standard item in the 90R kit.
The 90R Series has three types of fusion splicers suitable for 4-fiber ribbon, 12-fiber ribbon and 16-fiber ribbon. The each type mass fusion splicer has a wide heating area for maximum fibers that can be spliced. The wide electrode gap melts the fibers uniformly and has real-time arc discharge control by analyzing the arc’s brightness intensity. The 90R series does not have active core alignment mechanisms, however, during the discharge, fiber surface tension effects minimize preexisting offsets.
Model | Fusion splice |
Alignment | Via the cladding |
Key Features
- Model: Fusion splice
- Alignment: Via the cladding
