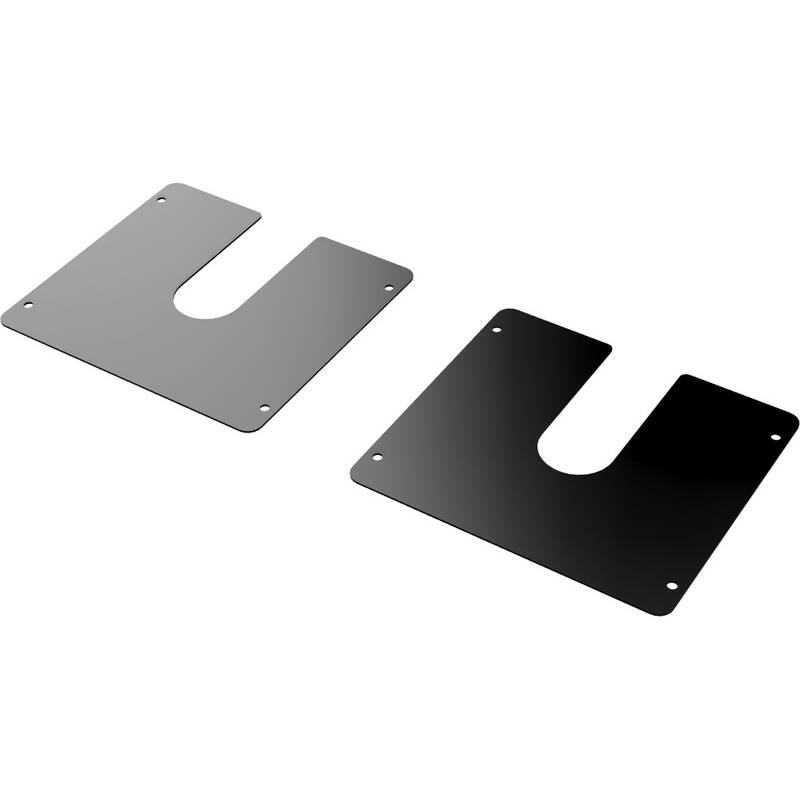

546-720-BK - Elevate DCR Roof Brushes PDU Hole Cover Plate Set Black

Part Code: 546-720-BK

These Elevate blanking panels allow brush entry holes to be closed off even when PDU's are installed. The have a 50 mm central slot and use the same holes as the existing brushes. They are supplied in pairs and will cater for both the holes on the roof of the rack, once the PDU's are installed.

Available in pairs in black and white
Suitable for 1000, 1200 and 1400 mm deep racks
Supplied as a kit for installation after PDU
Caters for 125 A PDU cable size
Fits with existing brushes in place

Width	195 mm
Depth	220 mm
Material	Steel
Type of surface	Powder coated
Colour	Black
RAL-number	9004

Key Features

Width: 195 mm
Depth: 220 mm
Material: Steel

Type of surface: Powder coated
Colour: Black
RAL-number: 9004
