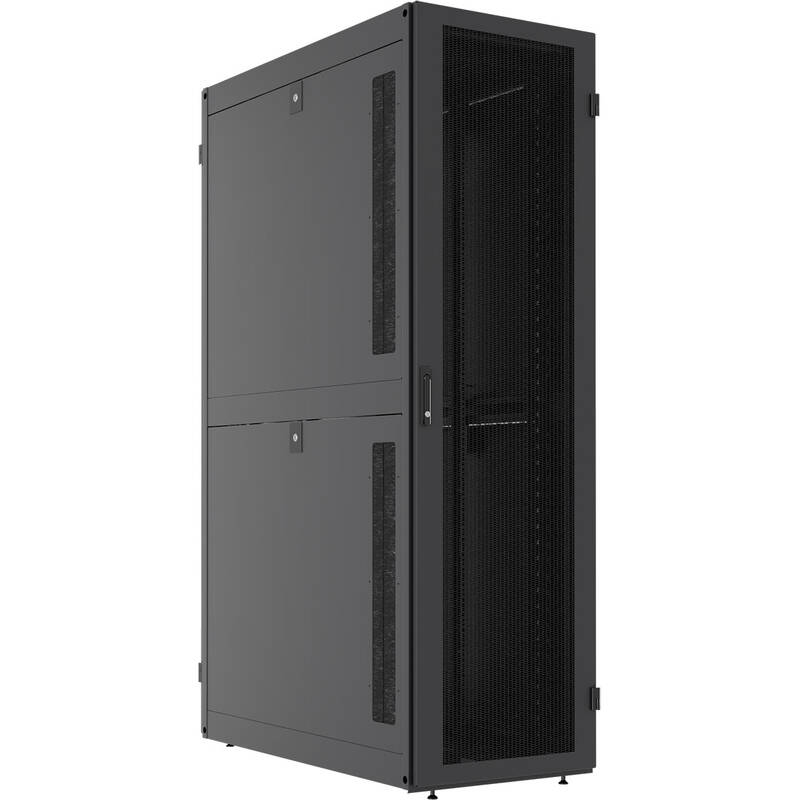

Elevate DCR600 42U Rack 600 mm x 1000 mm Vented (F) D/Vented (R) B/Panels F/Mgmt Black

Part Code: 546-42610-VDBF-BK

Elevate DCR Series Network Model with Vented Front Door, Double Vented Rear Doors, both side panels and Front Cable Management. The new Elevate data centre racks are a versatile range of 600 mm or 800 mm wide racks designed for the data centre market and based on our successful, market accepted Excel Rack design. The new DCR series feature the same flexibility of options and configuration with higher airflow mesh doors, airflow management baffles at the front, finger style cable management and upgraded manual or optional electronic handles. There is also improved cable access with full depth wide brush strips on the roof, cabinet to cabinet cable routing via side brush openings and multiple brush entry through the airflow management baffles.

  • Available in 42U, 47U and 52U sizes
  • High ventilation flat mesh doors front and back
  • Airflow management baffles as standard with cable management
  • Entry/exit points in roof compatible with 16A, 32A and 64A EN60309 Commando plugs
  • Upgraded cable tray fitted both sides
  • Front finger cable management as standard
Mounting Profile Front and rear
Type of profile rail L-shaped
Number of doors 2
Type of ventilation Passive
Width 600 mm
Height 2000 mm
Depth 1000 mm
Modular spacing 19 inch
Number of rack units (RU) 42
Max. load capacity 2000 kg
With roof plate yes
With earthing yes
With front door yes
Front door material Steel
Front door locking system Two-point
With rear door yes
Rear door material Steel
Rear door locking system Three-point
With glazed door no
Side panels included yes
With vertical cable management yes
Material Steel
Type of surface Powder coated
Colour Black
Model DC
RAL-number 9004
Flat-packed no
IP-rating IP20
Application Server Rack

Key Features

  • Mounting Profile: Front and rear
  • Type of profile rail: L-shaped
  • Number of doors: 2
  • Type of ventilation: Passive
  • Width: 600 mm
  • Height: 2000 mm
