aura 24AWG 8 Core Belden Alternative Multicore Cable F/SCR LSZH Eca Type 9538 Per Metre White

Part Code: 2408COFV-WT

This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.

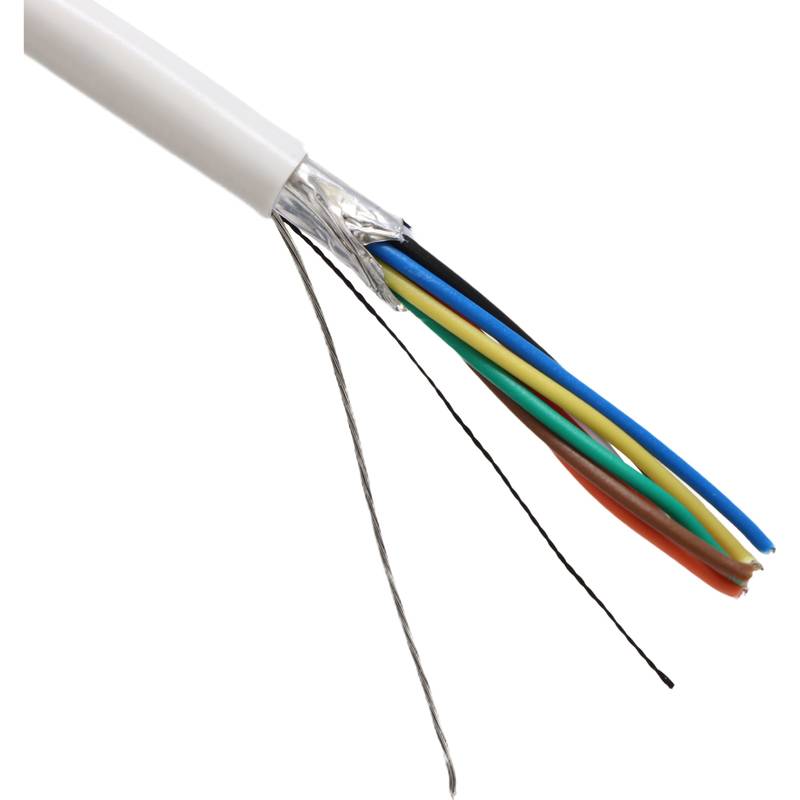

Aura Multicore cables manufactured and designed for sound broadcast, audio and instrumentation offering an alternative Belden style cable, with tinned copper conductors. An eight core cable with 24 AWG size conductors, single Drain Wire and overall foil shield in an LSZH Grey Sheath rated as Euroclass Eca.

Diameter of conductor TC 0.20 ±0.008 x 7
AWG size 24
Total number of cores 8
Core identification black, White, Red, Green, brown, blue, Orange, Yellow
Overall screening Foil
Outer sheath material LSZH
Outer sheath colour White
Flame retardant according to IEC 60332-1-2 yes
Halogen free (acc. IEC 60754-2) yes
Reaction-to-fire class according to EN 13501-6 Eca
Outer diameter approx. 5.70mm ± 0.2
Min. permitted bending radius, stationary application/permanent installation 50 mm
Operating Temperature Range -20...70 °C
Category Multicore Overall Screened

Key Features

  • Ideal for use with Mag Locks and Door Contacts
  • Eca Euro Class LSZH Cable
  • DoP and Test Class printed on Cable
  • Temperature Rating -20°C to 70°C
  • Voltage Rating 300V Max
  • Eight Core Overall Foil Cable
