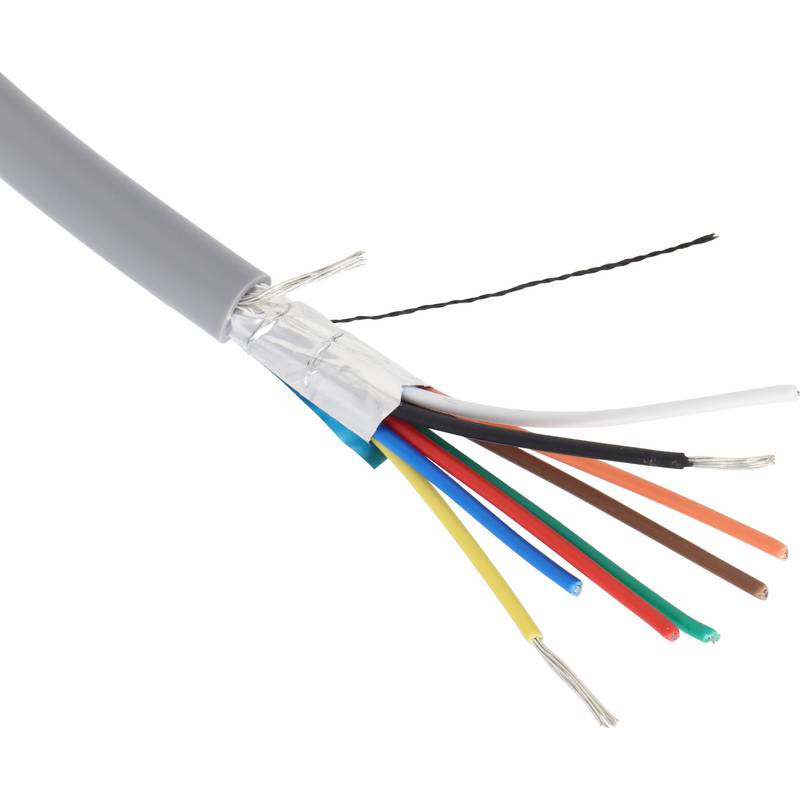

aura 24AWG 8 Core Belden Alternative Multicore Cable F/SCR LSZH Eca Type 9538 Per Metre Grey
Part Code: 2408COFV
Aura Multicore cables manufactured and designed for sound broadcast, audio and instrumentation offering an alternative Belden style cable, with tinned copper conductors. An eight core cable with 24 AWG size conductors, single Drain Wire and overall foil shield in an LSZH Grey Sheath rated as Euroclass Eca.
| Diameter of conductor | TC 0.20 ±0.008 x 7 |
| AWG size | 24 |
| Total number of cores | 8 |
| Core identification | black, White, Red, Green, brown, blue, Orange, Yellow |
| Overall screening | Foil |
| Outer sheath material | LSZH |
| Outer sheath colour | Grey |
| Flame retardant according to IEC 60332-1-2 | yes |
| Halogen free (acc. IEC 60754-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Outer diameter approx. | 5.70mm ± 0.2 |
| Min. permitted bending radius, stationary application/permanent installation | 50 mm |
| Operating Temperature Range | -20...70 °C |
| Category | Multicore Overall Screened |
Key Features
- Ideal for use with Mag Locks and Door Contacts
- Eca Euro Class LSZH Cable
- DoP and Test Class printed on Cable
- Temperature Rating -20°C to 70°C
- Voltage Rating 300V Max
- Eight Core Overall Foil Cable
- CIBSE TM65 Embodied Carbon: 0.304 kg CO2e
