Excel Flat Central Tube type 9/125/250 µm optical fibre cables have been designed specifically for applications requiring a high degree of mechanical protection. These compact, lightweight cables are extremely rugged and quick and easy to install.
Optical properties of the SM fibre are achieved through a germanium doped silica-based core with a pure silica cladding which meets ITU-T G657 and IEC 60793-2-50, UV curable acrylate protective coating is applied over the glass cladding.

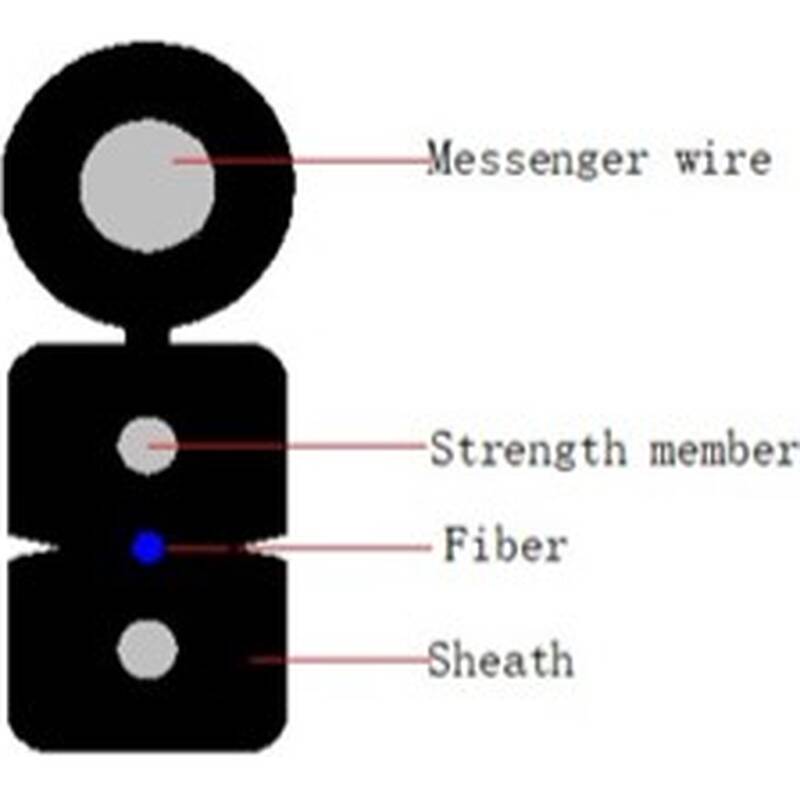

The cable has two strength memners, made from 0.5 +/- 0.05 GFRPand one galvanized steel wire 1.0 +/- 0.05 messenger wire.
The print legend on the cable includes information regarding the Test-Trace number for traceability.
| Number of Cores | 4 |
| Type of tube | None |
| Number of fibres per tube | 4 |
| Fibre type | Single mode 9/125 |
| Category | OS2 |
| Outer sheath material | LSZH |
| Outer sheath colour | Black |
