Excel Enbeam OS2 Singlemode Armoured CST Fibre Optic Cable Loose Tube 48 Core 9/125 Eca Blue
Part Code: 205-313
Excel corrugated steel tape (CST) OS2 9/125 µm armoured external multi loose tube optical fibre cables have been designed specifically for applications requiring a high degree of mechanical protection. The singlemode fibre is G.652.D compliant low water peak grade and offers OS2 performance and OS1 backwards compatibility.

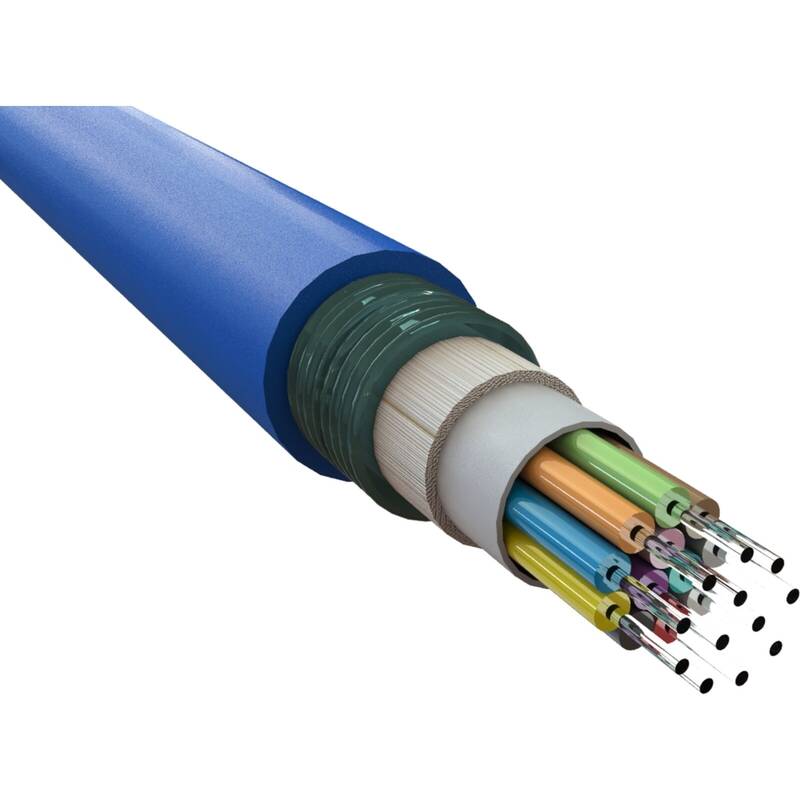

The cable is constructed from multiple gel filled loose tubes around a central strength member, overlaid with water blocking yarn and a water blocking tape surrounded by a corrugated steel tape and covered with a High Density Polyethylene (HDPE) outer jacket, allowing high core count fibres to be installed into the access network from 24 to 288 fibre core counts.
The CST cable has also been designed for direct burial, to ensure the correct installation a sand back fill must be used at all times.
Number of Cores | 48 |
Type of tube | Loose tube |
Number of fibres per tube | 12 |
Fibre type | Single mode 9/125 |
Category | OS2 |
Rodent resistant | yes |
Outer sheath colour | Blue |
Reaction-to-fire class according to EN 13501-6 | Eca |
Outer diameter approx. | 11.5 mm |
Key Features
- Duct-grade, rodent resistant
- Sequentially metre marked
- UV-Resistant
- Cut to length service
- 25 Year system warranty
- Euroclass Eca
- CIBSE TM65 Embodied Carbon: 0.938 kg CO2e
