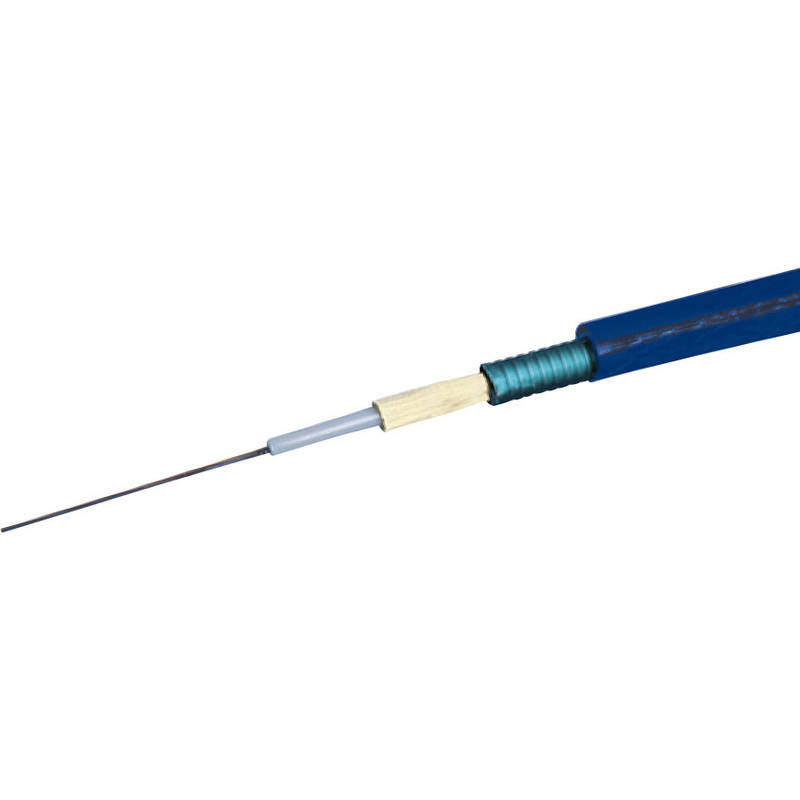

Excel Enbeam OM4 Multimode Armoured CST Fibre Optic Cable Loose Tube 4 Core 50/125 LSOH Eca Blue

Part Code: 204-204

Enbeam OM4 Multimode CST Armoured Fibre Optic Cable Loose Tube 4 Core 50/125 LSOH Eca Blue, part of a huge range of OM4 fibre optic cables fully stocked at Mayflex. Excel corrugated steel tape (CST) OM4 50/125μm armoured loose tube optical fibre cables have been designed specifically for applications requiring a high degree of mechanical protection.

These compact, lightweight cables are extremely rugged, provide rodent resistance and are quick and easy to install. The cables are constructed around a silica gel filled tube(s) containing up to 24 colour coded 250μm buffered fibres, which is covered with E‐glass strength members.

The CST cable has also been designed for direct burial, to ensure the correct installation a sand back fill must be used at all times.

Number of Cores 4
Type of tube Loose tube
Number of fibres per tube 4
Fibre type Multi mode 50/125
Category OM4
Rodent resistant yes
Outer sheath material Copolymer, thermoplastic (LS0H)
Outer sheath colour Blue
Flame retardant according to IEC 60332-1-2 yes
Reaction-to-fire class according to EN 13501-6 Eca
Outer diameter approx. 8.4 mm

Key Features

  • Water Resistant & UV Resistant
  • Duct grade ‐ Rodent resistant
  • Sequentially metre marked
  • Cut to length service
  • Euroclass Eca
  • 25 Year system warranty
