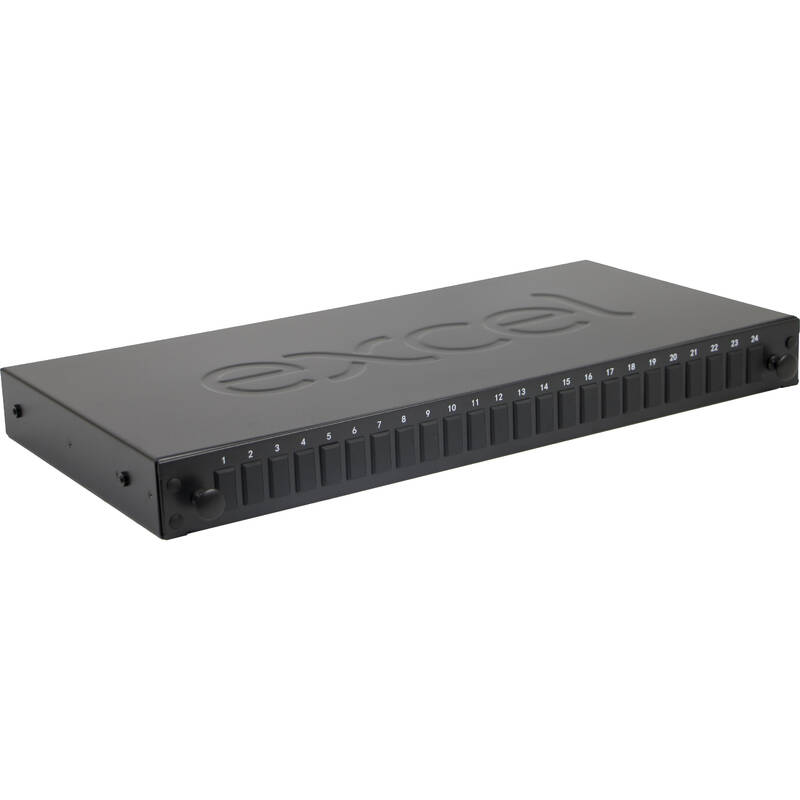

Excel Enbeam 24 Way SC Simplex/LC Duplex Fibre Optic Panel Empty
Part Code: 200-952-HB
The Excel range of SC patch panels are sliding drawer "tray style" housings suitable for either direct termination or splicing of up to 24 fibre using SC Simplex or 48 when using LC Duplex connections in a 1U space. Each panel is manufactured from a mix of 2 mm thick steel with a powder coated finish and a high-density polycarbonate sliding tray, offering a lightweight, strong durable unit.
To the front of the patch panel the specified number of duplex/quad adaptors are loaded from left to right. Each panel utilises colour coded adaptors, beige, aqua and violet for multimode, blue for single mode and green for SM APC. Each simplex/duplex adaptor accommodates 1 to 2 terminated fibres.
Note that this panel only accepts flanged and flangeless SC/LC adaptors and can be assembled to order using a combination of adaptors, pigtails and splice cassettes - call to enquire.
Suitable for number of fibre cores | 48 |
Suitable for number of module inserts | 24 |
Loaded with number of couplings/adapters | 0 |
With pigtails | no |
APC-type | no |
Type of connector external | SC simplex/LC duplex |
Type of connector interior | SC simplex/LC duplex |
Colour | Black |
RAL-number | 9005 |
Mounting method | 482.6 mm (19 inch) mounting |
Number of rack units (RU) | 1 |
Height | 43.5 mm |
Width | 483 mm |
Depth | 219.5 mm |
Key Features
- Management and fixing kit included
- Upto 24 simplex adaptors per patch panel
- Port identification numbers
- Sliding drawer on ball bearing runners
- Recessed adaptors
- Special configurations made to order
- 25 year system warranty
