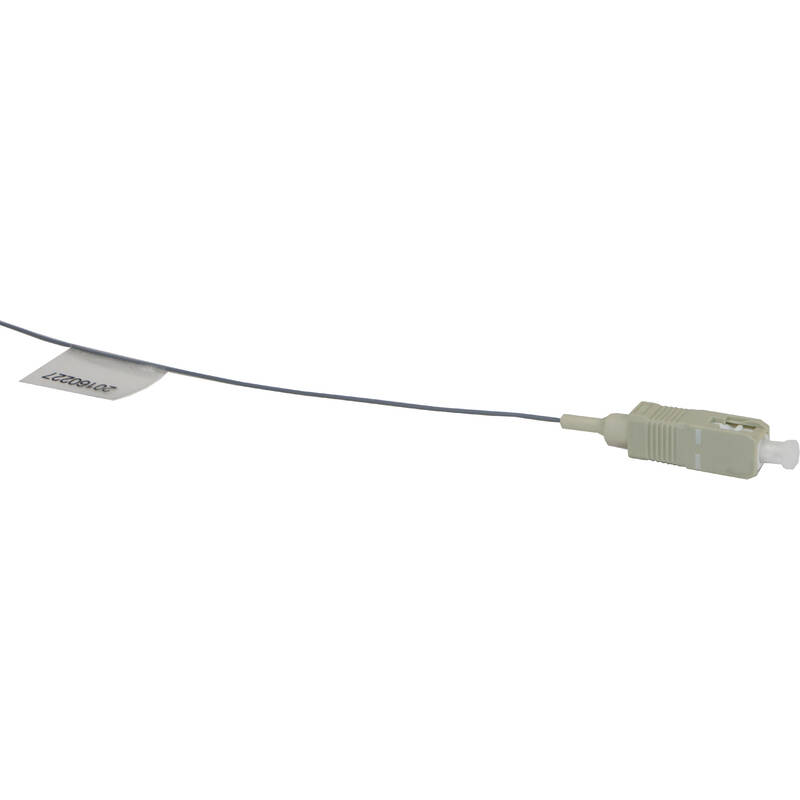

Excel Enbeam Fibre Pigtail OM2 50/125 SC/UPC White 2 m
Part Code: 200-553
Excel multimode fibre optic pigtails are manufactured from the highest quality 900 micron optical fibre, terminated with ceramic ferrule connectors of various types. To assist in fast cable preparation and splicing semi tight buffered, easy strip, cable is used as standard. Cable preparation, termination and testing is carried out to strictly managed procedures in an Excel approved, ISO9001 registered manufacturing facility.
Each pigtail has a strain relief boot to prolong and maintain performance levels of the assembly. A short distance from the connector a label containing a unique batch number is fixed to cable for quality and traceability purposes.
| Fibre type | Multi mode 50/125 |
| Category | OM2 |
| Length | 2 m |
| Type of connector | SC |
| APC-type | no |
| Colour | White |
| Strain relief boot | Push-on |
Key Features
- Semi Loose Buffered
- Choice of lengths
- Choice of connectors
- Each cable is individually packaged and labelled
- Test Certificate with each cable
- RoHS Compliant
- Bend insensitive construction
