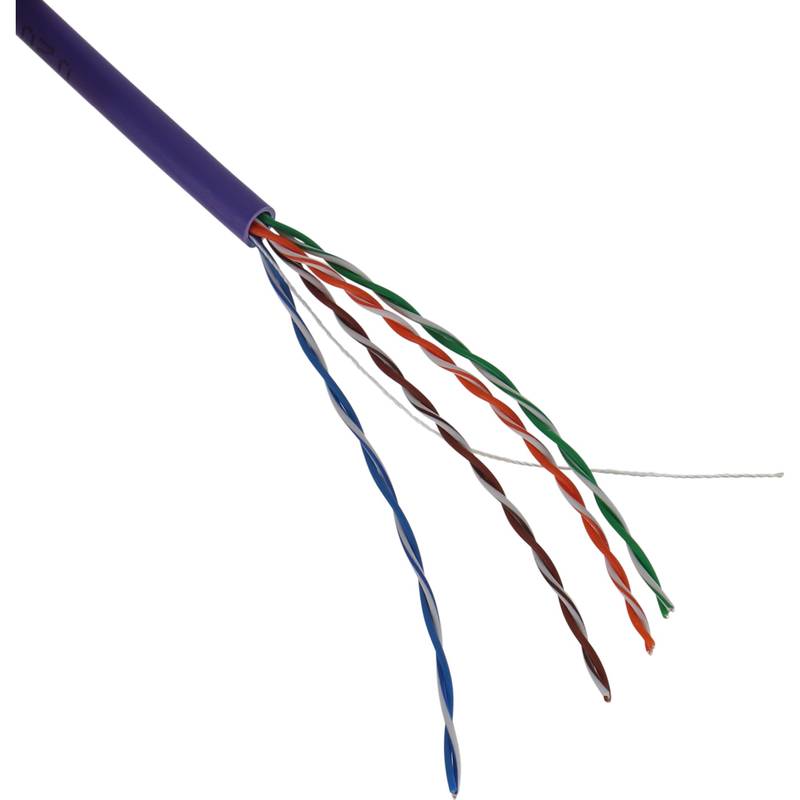

Excel Solid Cat5e Cable U/UTP LSOH Euroclass B2ca 305 m Box Violet
Part Code: 190-066
Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass B2ca are manufactured and tested to ISO 11801, EN 50173 and ANSI/TIA‐568‐C Cat 5e specifications, 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.
The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.
| Conductor surface | Bare |
| AWG size | 24 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | None |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Violet |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d0 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 5 mm |
| Operating Temperature Range | -20...60 °C |
| Category | 5E |
| NVP value | 65 % |
Key Features
- Cat5e Solid Copper Cable
- U/UTP No Overall Screening
- No Conductor Screening
- Outer sheath colour Violet
- Reaction-to-fire class according to EN 13501-6: B2ca
- Smoke development class according to EN 13501-6: s1a
- CIBSE TM65 Embodied Carbon: 65.860 kg CO2e
