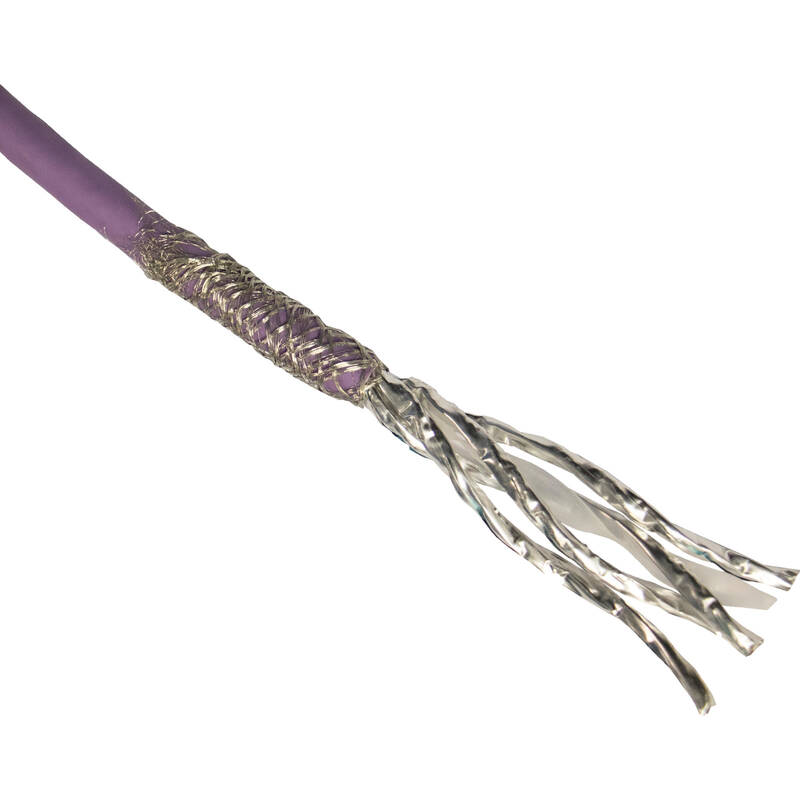

Excel Category 8 Cable S/FTP Dca LS0H 305m Reel - Violet

Part Code: 100-903

The Excel Category 8 Screened S/FTP LSOH Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards.

The performance characteristics have been enhanced to 2000 MHz for specialist applications. Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These sub units are then cabled together, with the pairs set to different lay lengths to ensure optimum performance, an overall braid screen is applied to provide further immunity to outside noise and to mitigate any risk of alien cross talk.

The print legend on the cable now includes information regarding the DOP number, Test and Classification of the cable for traceability.

  • Category 8
  • Low Smoke Zero Halogen Jacket
  • High performance design
  • Individual foil pairs with overall braid screen
  • 22 AWG Conductors
  • Euroclass Dca-s2-d2-a1
Category 8
Overall screening Braiding
Conductor screening Foil
Outer sheath colour Violet
Reaction-to-fire class according to EN 13501-6 Dca
Smoke development class according to EN 13501-6 s2
Euro class flaming droplets/particles according to EN 13501-6 d2
Euro class acidity according to EN 13501-6 a1
AWG-size 22
Specification core insulation PE
Core identification Colour
Outer sheath material Copolymer, thermoplastic (LS0H)
Halogen free (acc. EN 60754-1/2) yes
Flame retardant In accordance with EN 60332-1-2 and EN 50399
Low smoke (acc. BS EN 61034-2) yes
Outer diameter approx. 8.3 mm
NVP value 74 %
Conductor category Class 1 = solid
Total number of cores 8
Stranding element Pairs
Conductor surface Bare

Key Features

  • Category: 8
  • Overall screening: Braiding
  • Conductor screening: Foil
  • Outer sheath colour: Violet
  • Reaction-to-fire class according to EN 13501-6: Dca
  • Smoke development class according to EN 13501-6: s2
