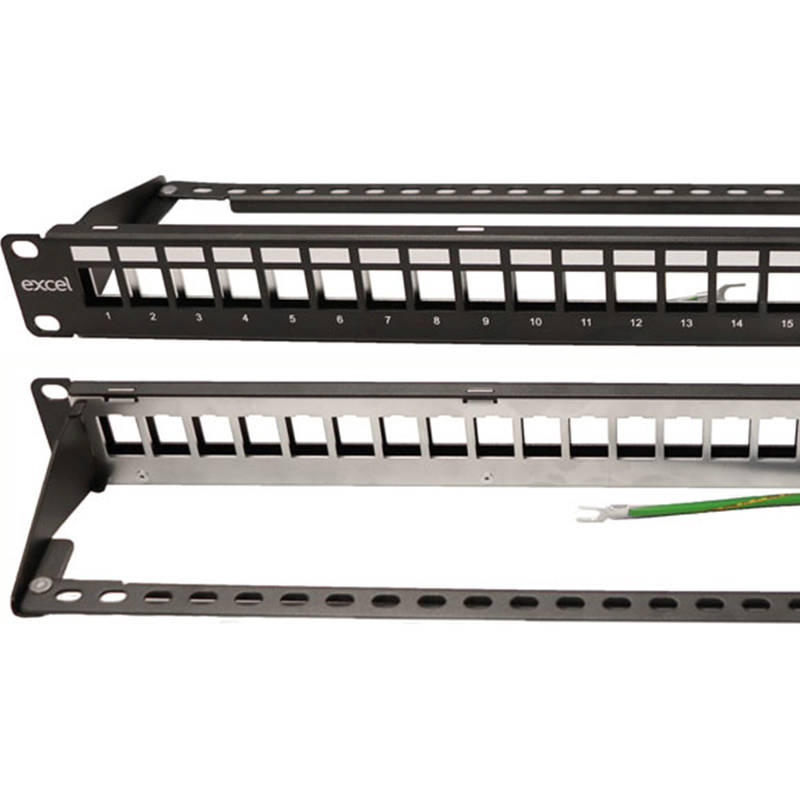

Excel Unloaded 24 Port Screened Keystone Patch Panel Frame 1U Black
Part Code: 100-755
Excel keystone jack patch panel frames are available for mounting on the range of screened and unscreened Excel toolless keystone jacks. A rear management tray with purposely designed cable tie positions is supplied with each panel, and is fitted without the need for any tools or fixings by simply snapping it into place.
| Suitable for number of outlets / modules | 24 |
| Shielded | yes |
| Category | Keystone jack dependent |
| Number of rack units (RU) | 1 |
| Colour | Black |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 44 mm |
| Width | 482.5 mm |
| Depth | 155 mm |
Key Features
- Earthing kit, cage nuts and mini cable ties included
- Fast fit rear cable management
- For Screened and Unscreened systems
- 25 Year system warranty
- CIBSE TM65 Embodied Carbon: 4.231 kg CO2e
