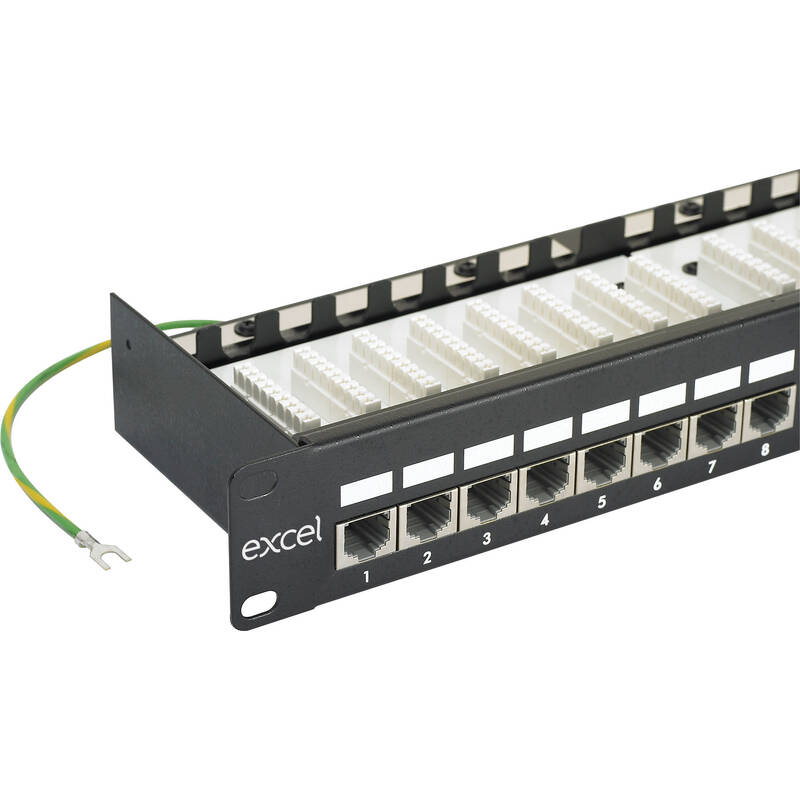

Excel Cat5e 24 Port Screened Patch Panel 1U LSA Punch Down Black
Part Code: 100-736
This product is no longer available. Please browse the website for alternatives or contact our Sales Team for assistance.
Excel Category 5e Screened Patch Panels comply with the current standards for enhanced Category 5. Ease of installation is assured with built in rear cable management at a 90˚ angle to the panel facia.
| Number of ports – loaded | 24 |
| Type of connector | RJ45 8(8) |
| Shielded | yes |
| Category | 5E |
| Connection type | LSA |
| Number of rack units (RU) | 1 |
| Colour | Black |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 44 mm |
| Width | 480 mm |
| Depth | 102 mm |
Key Features
- Screened
- Choice of port density
- Supports Gigabit Ethernet
- Cage nuts and mini cable ties included
- LSA Style Termination Blocks
- T568A/B Wiring Configuration
