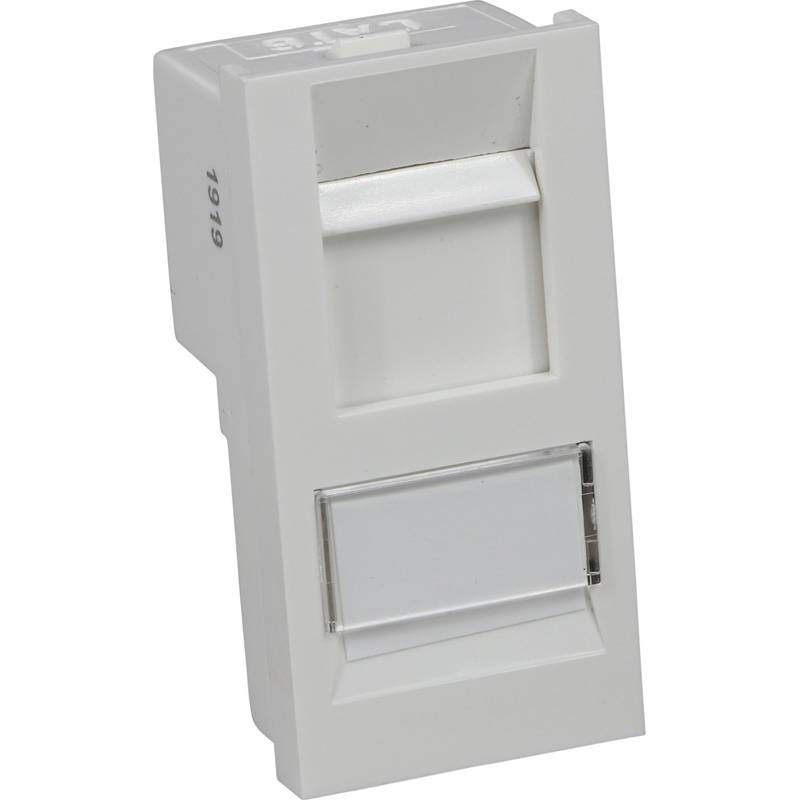

Excel Cat6 (UTP) Unscreened Low Profile RJ45 Euro Module White
Part Code: 100-366
Excel Category 6 RJ45 modules comply with the EIA TIA Standard for Category 6. Each shuttered module is supplied with a slide label field and space above, this is allowed for use of self adhesive or further labelling if required.
Termination can be made using Krone tooling, a cable tie base is positioned to the side of the IDC blocks to relieve cable stress.
| Surface mounted | Yes (faceplate required) |
| Flush-mounted installation | Yes (faceplate required) |
| Floor box/sub-floor mounted | Yes (faceplate required) |
| Type of fastening | Engage (snap) |
| Type of connector | RJ45 8(8) |
| Category | 6 |
| Colour | White |
| RAL-number | 9016 |
| Connection type | LSA |
| Shielded housing | no |
| With label space | yes |
| Outlet direction | Straight |
| Colour coding | yes |
| Width of device | 25 mm |
| Height of device | 50 mm |
| Depth of device | 23.1 mm |
Key Features
- Category 6
- Low profile
- Fits 27mm back box when used with bevelled faceplate
- Built in slide label system
- Choice of colours
- 25 Year system warranty
- CIBSE TM65 Embodied Carbon: 0.281 kg CO2e
