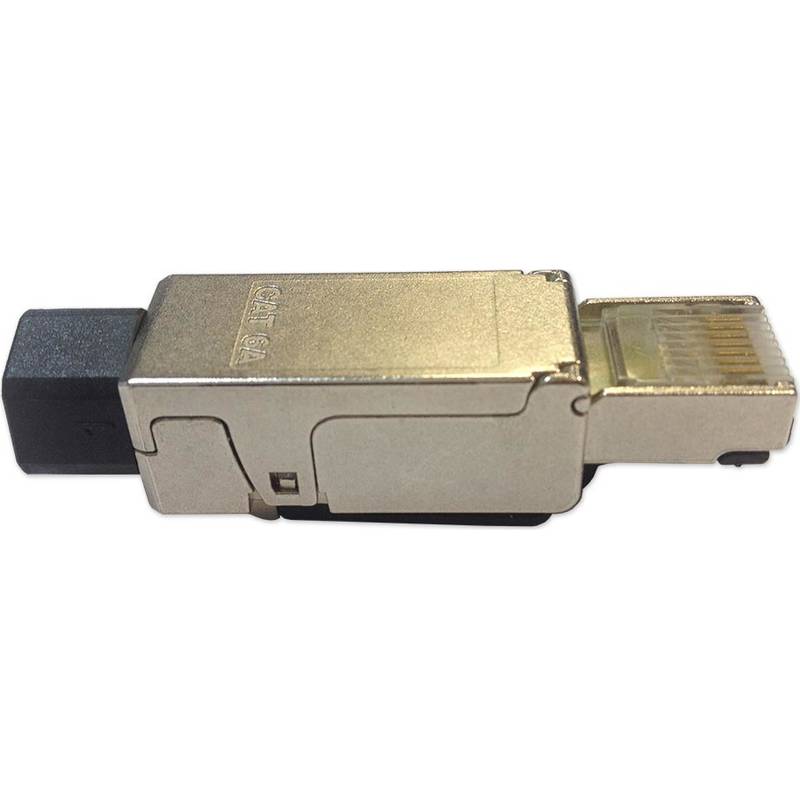

Excel Cat6A (FTP) Field Termination RJ45 Plug
Part Code: 100-140
Screened Field Termination RJ45 Plug offers easy, toolless termination, and it complies fully with ISO/IEC 11801, Category 6A and ANSI/TIA-568-C.2 standards.
It offers a fully shielded die-cast zinc alloy, nickel plated body and gold plated phosphor bronze contact pins. Suitable for cable diameters between 6 and 8mm, strain relief is provided by the compression nut on the back of the connector. IDC termination accepts wire gauges from 23 to 26AWG.
| Model | Plug |
| Type of connector | RJ45 8(8) |
| Shielded | yes |
| Category | 6A (IEC) |
| Connection type | Crimp |
| Requires termination tool | no |
| Suitable for round cable | yes |
| Suitable for flat cable | no |
| Suitable for stranded core | yes |
| Suitable for solid core | yes |
| Colour | Silver |
| AWG-range | 23...26 |
Key Features
- Fully screened Category 6A
- Die-cast zinc alloy construction
- Toolless - easy termination
- Supports 10 Gigabit Ethernet
- Independently verified
- Can be re-terminated numerous times
- CIBSE TM65 Embodied Carbon: 0.245 kg CO2e
